Diamond Drilling

This method is utilised when drilling hard rock.  Diamond drilling employs an annular diamond-impregnated drill bit attached to the end of hollow drill rods to cut a cylindrical core of solid rock. Drillwest’s Diamond rigs can be used for Diamond drilling or as a part of a multi-combination rig.

RIGS 4 & 5: DIAMOND RIGS – Boart Longyear LF 90D

The LF90D Drill rigs were purchased new in 2007. They have worked in various regions of WA and the Northern Territory. The rigs and rod sloops are all on jack up bases, this minimises the manual handling of drill pipe. This type of rig is capable of drilling depths of approximately 635m HQ, 940m NQ and 420m PQ.

RIG 6: TRACK MOUNTED DIAMOND RIG – Boart Longyear LF 90D

This LF90D Drill rig was purchased new in 2008. It has worked in various regions of WA and the Northern Territory. The rig is track mounted for maximum manouvreability and access to difficult terrain. The rig is capable of drilling depths of approximately 635m HQ, 940m NQ and 420m PQ.

RIG 7: Hydco 1200H

This rig was purchased new in September 2011.

This universal rig has the capability of drilling in either RC or Diamond mode. It has a capacity of 1200m HQ, 1800m NQ and 800m PQ.

The rig is mounted on a 8X8 Tatra carrier for maximum site access.

RIGS 19,20,21 22: Boart Longyear LF90D

Unique, truck mounted LF90's provide an offroad diamond solution. The rigs are capable of drilling depths of approximately 635m HQ, 940m NQ and 420m PQ.

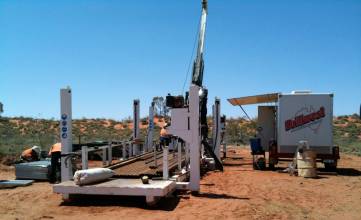

Drillwest has been operating three LF90D Diamond Drilling rigs since 2007. Each is capable of drilling to depths of 635 metres HQ, 940 metres NQ and 420 metres PQ.

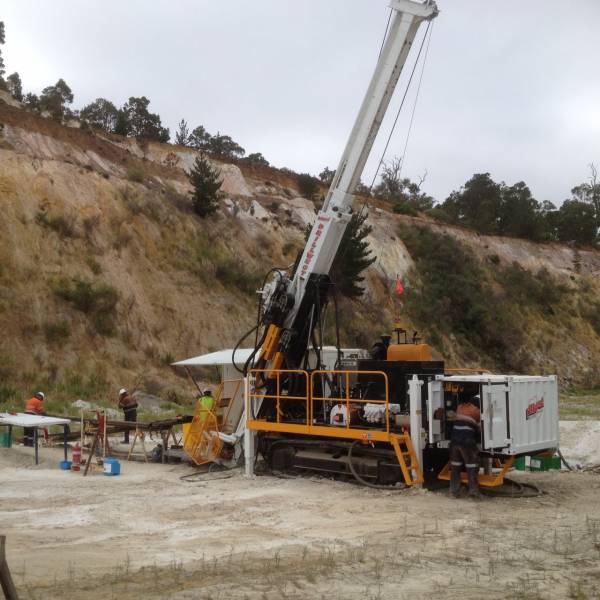

Rig 6: Track Mounted Boart Longyear LF90D

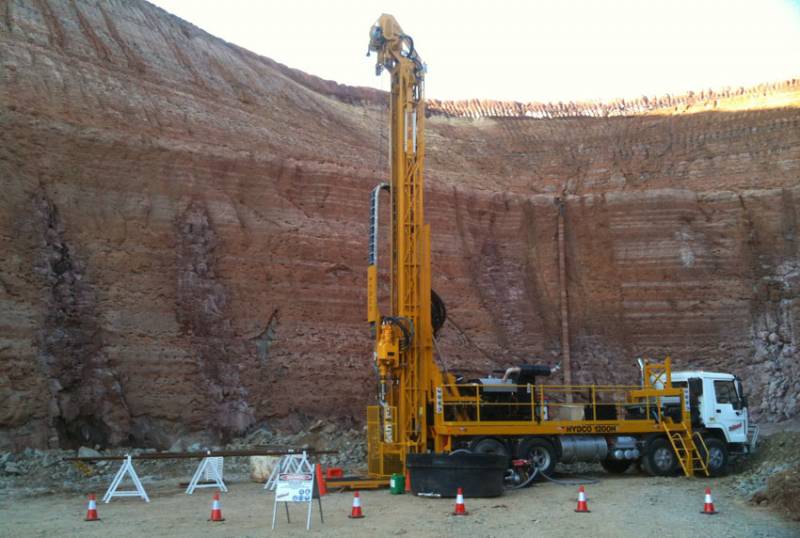

Drillwest Rig 7 carrying out Diamond Drilling operations in an open cut mining operation.

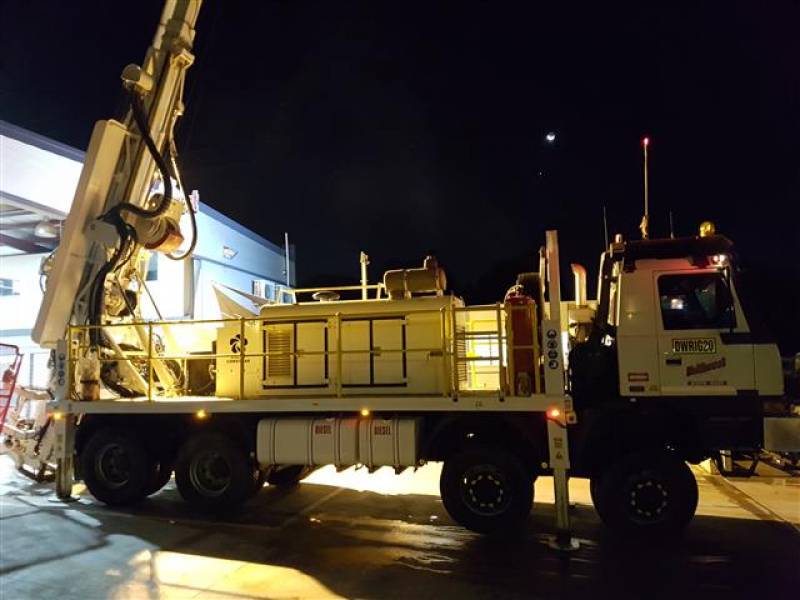

Drillwest Rig 20 LF90D offroad truck mounted
